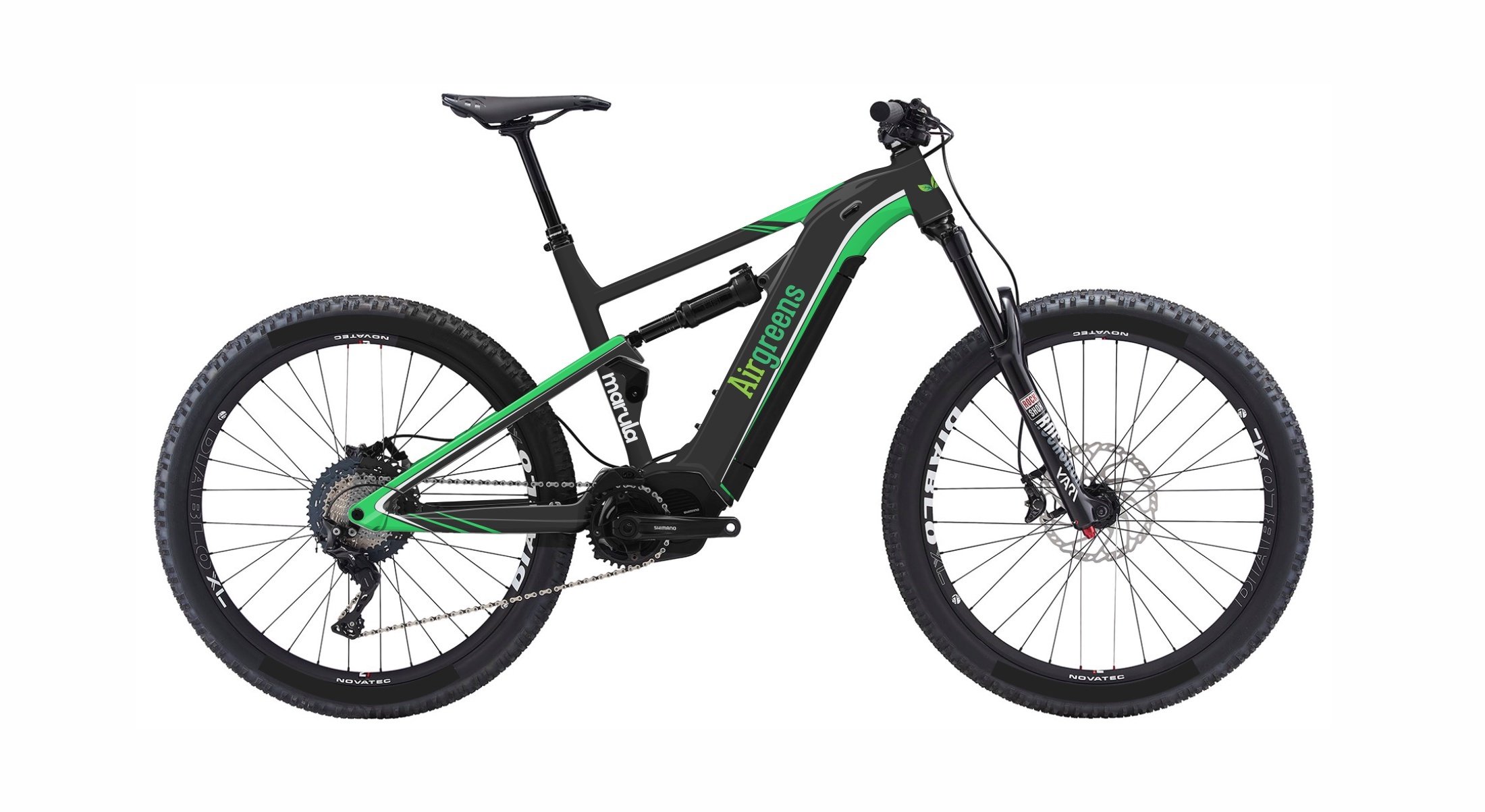

MARULA EMTB 27.5+”or 29”

FULL SUSPENSIONE-MOUNTAIN BIKE.

MARULA frame design is inspired by the Legends and fables in Africa about The Magic Marula tree.

Marula has played an integral part of the lives of animals and people in Africa since 10,000 BC.

Marula fruits are enjoyed by waterbuck, warthog, elephant, giraffe, kudu and elephant. You may have heard of one of the many by-products of the fruit “Amarula” , a thick creamy liqueur.

MARULA FRAME OVERVIEW

  • Full ( Dual ) Sus Frame for Integrating Bafang BBS Motor and Eel battery.

  • Suitable for both Wheel set sizes : 27.5* (650B) + 29er wheel sets.

  • Tyre widths : 27.5* - up to 3.0" wide | 29* - up to 2.8” .

  • Frame Sizes : M - 17" , L - 19" , XL - 21"

  • Material : Alloy 6061

  • Artwork: High quality enamel gloss with anti-rust treatment .

  • EU Frame safety standard-tested : EN15194

  • Frame Colour: Olive Green (See Pantone Reference)

    Motor-Frame Compatibility *

  • Bafang BBS02 | BBSHD mid drive motor systems.

  • Bafang M215/M315) 48V 68mm BB 250w, 350w, 500w, 750w. M615 BBSHD 68mm BB 750w and 1000w.

  • BB Compatibility: 68-73mm

  • Motor is Protected inside the frame from outdoor elements - rain , mud ,direct sunlight and knocks from rocks or other objects during riding.

  • Motor Plates ( x1 for each side ) further protect against salt spray & water splash - ideal for coastal regions.

{ * If you do not have a Bafang motor and need help to get one please contact us )

Battery-Frame Compatibility: *

  • EEL li ion battery is automatically locked-In to the frame down-tube when inserting it.

  • Easy Removal : A key is used to unlock Eel.

  • Charge Eel on your e-bike or remove to charge.

  • Battery specs : Samsung Li ion 18-650 cells 35E 3500 mah 48v 17.5aH ( 840wH ).

  • Average Range : 100km on medium level PAS .

{ * Normally available in the U.S and EU .If you need to get an Eel battery please contact us )

Mechanical Component Compatibility *

  • Are you interested in installing your current bike parts on Marula frame ?

  • This may be done partly or completely depending on compatibility.

{ * If you need our help to see if some or all of your Mechanical parts are compatible for installing on Springbok or if you need to source components , please contact us )

★★★★★

GUIDELINE ON FRAME CHOICE:

  1. Riders Height 1.70-1.80m ( 5.58 ~ 5.9 feet ) : 17”

  2. Riders Height 1.80-1.90m ( 5.9 ~ 6.23 feet) : 19”

  3. Riders Height 1.90m - 2.0m ( 6.23 ~ 6.56 feet) : 21"

Early Bird Special discount .

Pre-Order Yours now for Door-to-Door delivery in May 2024 🚚

Please View Compatibility Specs Below.

For each Marula order we work with GREENPOP to plant a Tree.

Once Planted , a Greenpop certificate is emailed to you as proof of the action taken with your Tree GPS co-ordinates.



DO YOU HAVE ANY QUESTIONS ABOUT MARULA Frame?

PLEASE SHOUT IN THE FORM BELOW AND WE’D BE HAPPY TO HELP.
